Name: 630-1200mm HDPE Butt Fusion Welder | DVS2207 Hydraulic Machine
Brand: HEBEI ZEMO TECHNOLOGY CO., LTD.
Price: 50.00 USD
Availability: InStock

Home Products Manual Butt Fusion Welding Machine

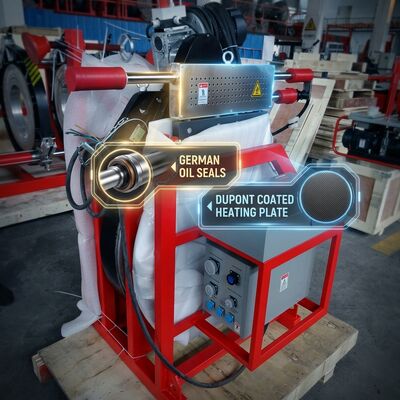

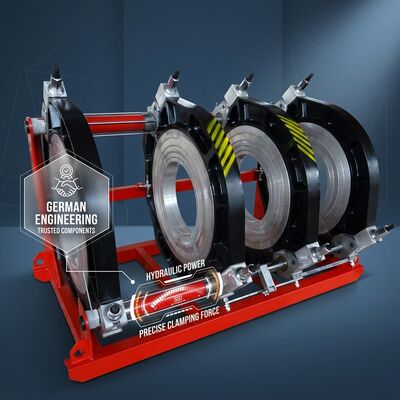

630-1200mm HDPE Butt Fusion Welder | DVS2207 Hydraulic Machine

Product Details:

Contact Now

Detailed Product Description

Highlight:

HDPE butt fusion welder machine

hydraulic butt fusion welder 630-1200mm

manual butt fusion welding machine

HDPE Hydraulic Butt Welding Equipment Description

In the poly welding process known as butt fusion welding (also called PE butt welding or HDPE butt welding), butt welders scrape, heat and weld HDPE pipe together. Butt welders come with manual or electric hydraulics. All butt welders (except self-contained units) require power for the heater plate and milling cutter/scraper. Electric hydraulic butt welders also use electricity for the hydraulic system that holds the pipe during scraping, heating and cooling phases.

HDPE Hydraulic Butt Welding Equipment Specification

Product Name		1200MM HDPE Hydraulic Butt Welding Equipment
Model		SMD-B1200/630H
Pipe size (Inch)		630,710,800,900,1000,1200MM
Application		PE Pipe & Fitting Welding
Heating plate Max. Temperature		270℃
Temp.deviation in surface (170-250 ℃)		≤±7℃
Pressures Adjustable Ranges		0-16Mpa
Working Voltage		380/415V 50/60HZ
Heating plate power		21.5KW
Planing tool power		4KW
Hydraulic unit power		3KW
Crane Power		1KW
Total Power		29.5KW
Weight		2740KG
Packing	Cases	5 plywood cases
	Volume	19.54CBM

FAQ

1. ZEMOWELD: comprehensive manufacturer of thermoplastic welding equipment, exporting from China since 2000.
2. Quality: pre-production samples + final inspection.
3. Products: Butt Fusion, Electrofusion, PPR, Automatic, Fittings, Pipe Tools.
4. CE/ISO/BV/SGS/CNAS certified. Full 40mm-3000mm range.
5. FOB/CFR/CIF/EXW/FAS/CIP/FCA/CPT/DDP/DDU. Payment: USD/EUR/CNY via T/T, L/C, D/P, D/A, , PayPal, Western Union.

Warranty & Standards

ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007) compliant.
24-month international warranty with free replacement of defective parts.
