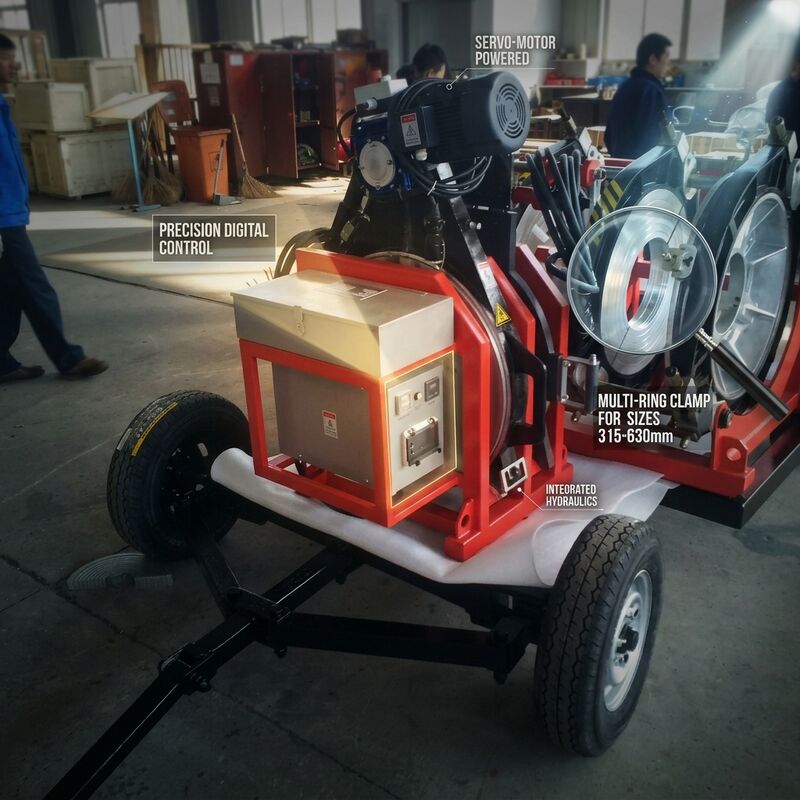

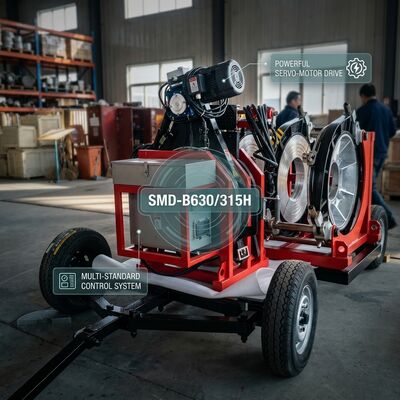

380V 630mm HDPE Hydraulic Butt Fusion Welder | ISO Compliant

1. Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.
2. Consists of basic frame, hydraulic unit, planing tool, heating plate, basket & optional parts.
3. Removable PTFE coated heating plate with high-accuracy temperature control system.
4. Electric planing tool.
5. Reliable structural design — suitable for multi-jobsite operations.
6. Changeable welding position enables easier welding of various fittings.
7. High-accuracy and shockproof pressure meter.
8. Separate two-channel timer records time in soaking and cooling phases.

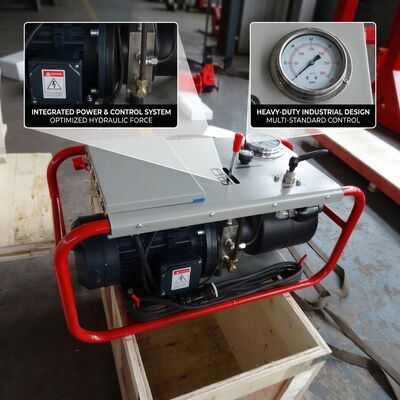

The unique powertrain creates sufficient hydraulic power for welding while ensuring precise control — and significantly reduces control box weight. The servo-motor dramatically reduces failure probability and maintenance cost.
Various welding standards (DVS, ISO, WIS) can be pre-installed in different languages. Welding reports save to internal memory (2000 report capacity), can be printed, or downloaded via USB.
When the heating plate hooks up with the machine chassis, insertion/release of the heater is remotely controlled by the hydraulic unit (same as trimmer), preventing operator injury.
