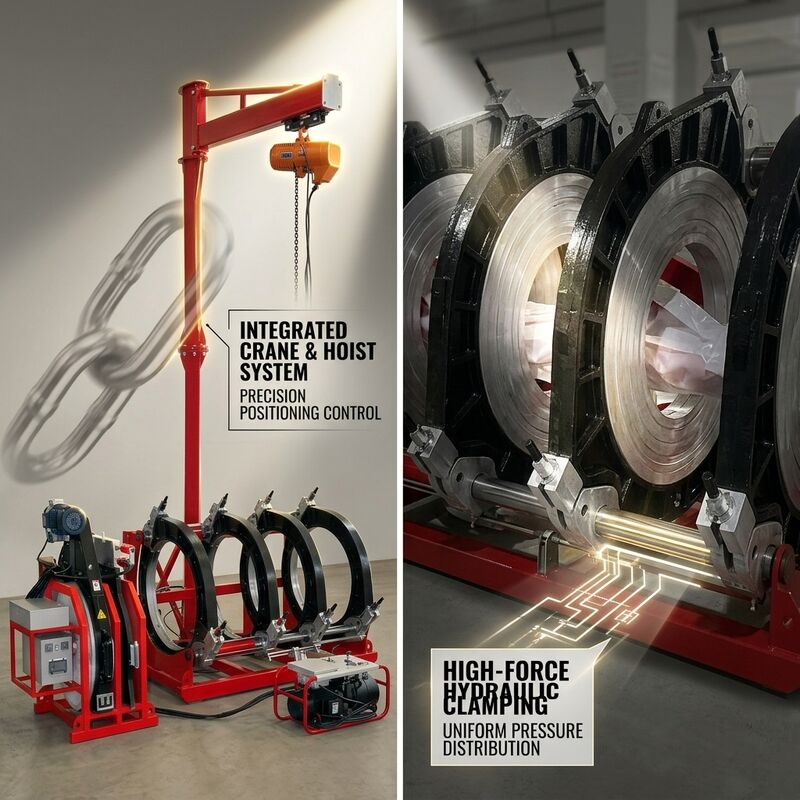

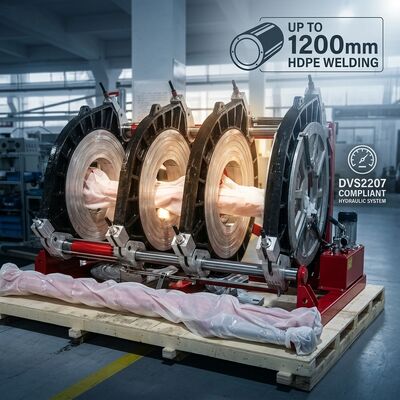

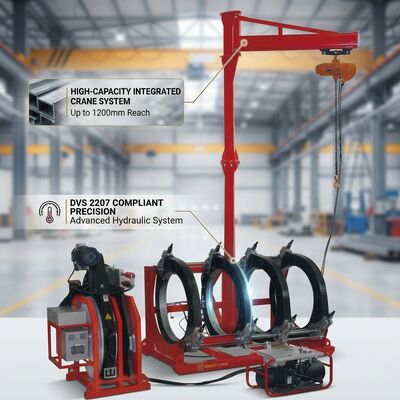

PVDF HDPE Pipe Butt Fusion Machine 630mm | SMD-B630/315H Hydraulic

A. Manual HDPE butt fusion welding machine: 63mm to 200mm for HDPE pipe.
B. Hydraulic HDPE butt fusion welding machine: 50mm to 20000mm for HDPE pipe.
C. Pipe cutting saws: 0mm to 1600mm for HDPE pipe.
D. Workshop HDPE fitting machine: 90mm to 1600mm.

All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007).

The unique powertrain creates sufficient hydraulic power during welding while ensuring precise control — and significantly reduces control box weight. The servo-motor dramatically reduces failure probability and maintenance cost.
Various welding standards (DVS, ISO, WIS) can be pre-installed in different languages. All welding reports save to internal memory (2000 report capacity) or print directly — plus USB download capability.
When the heating plate hooks up with the machine chassis, insertion and release of the heater is controlled remotely by the hydraulic unit (same as the trimmer), preventing operator injury.
