Semi-Auto 90-315mm HDPE Butt Fusion Welder | Hydraulic Data Logger

Product Details:

Contact Now

Detailed Product Description

Highlight:

Semi-Auto HDPE butt fusion welder

Hydraulic data logger welder

Manual butt fusion welding machine

Semi-Automatic Butt Fusion Welding Machine Description

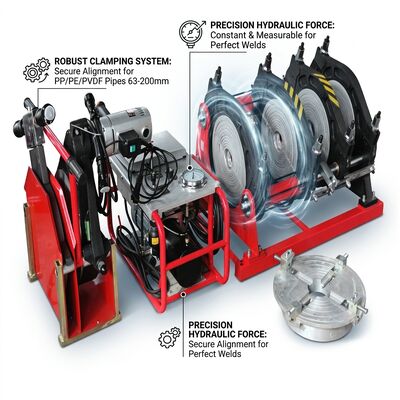

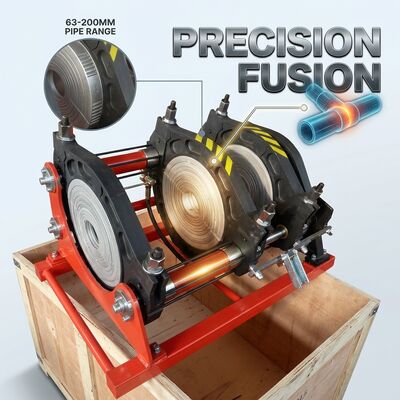

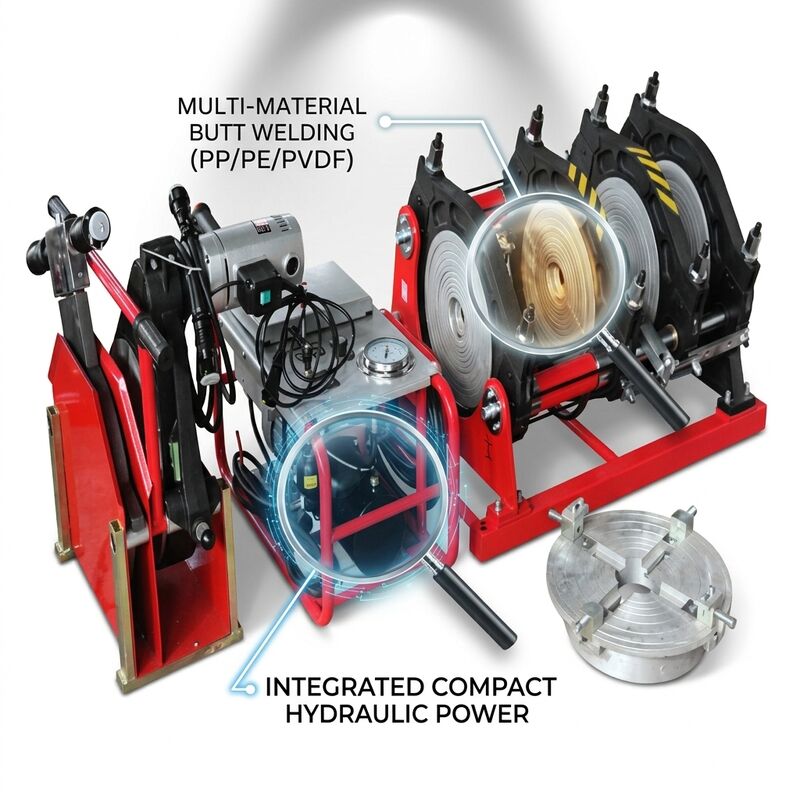

This 220V hydraulic butt fusion welding machine handles HDPE pipes from 90mm to 315mm, joining PE, PP and PVDF materials with ease in any complex work environment. The integrated system comprises a basic frame, hydraulic unit, electric planing tool, PTFE-coated heating plate, and dedicated support brackets. When equipped with the optional data logger, the welding process operates semi-automatically — continuously repeating welding cycles with automatic preset parameter control. The data logger stores up to 1000 welding cycles and exports encrypted EXCEL reports via USB.

Semi-Automatic Butt Fusion Welding Machine Specification

Model		SMD-B315/90H
Pipe size (mm)		90,110,125,140,160,180,200,225,250,280,315
Heating plate Max. Temperature		270℃
Temp.deviation in surface (170-250 ℃)		≤±7℃
Pressures Adjustable Ranges		0-6.3Mpa
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		3.5KW
Planing tool power		1.1KW
Hydraulic unit power		0.75KW
Total Power		5.35KW
Weight		260KG
Packing	Cases	3 plywood cases
	Volume	1.07 CBM

Key Features

Removable PTFE anti-stick heating plate with independent temperature control.
Electric planing tool for clean, parallel end face preparation.
Lightweight high-strength construction — user-friendly and durable.
Low starting pressure protects small-diameter pipe fusion quality.
Dual-channel timer independently tracks soak and cooling phase durations.
High-accuracy shockproof pressure gauge with clear analog display.

Warranty

ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007) compliant design.
24-month international warranty on all components.
