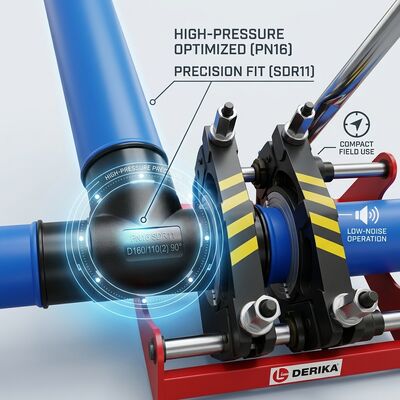

Thermofusion Hydraulic Butt Welder PP PE PVDF 63-200mm

Product Details:

Contact Now

Detailed Product Description

Highlight:

Thermofusion hydraulic butt welder PP PE PVDF

Manual butt fusion welding machine 63-200mm

Hydraulic butt welder with thermofusion technology

Thermofusion Butt Fusion Hydraulic Welding Machine Description

Butt fusion welding is the established hot plate welding technique for thermoplastic pipes — one of two main methods for fusion joining polyethylene gas and water pipe. The heating phase (bead-up) involves pressing pipe ends against the heated plate for a set duration. This is followed by the heat soak phase where pressure reduces to just hold the pipe ends on the hot plate, allowing heat absorption into the material. After heat soak, the hot plate is removed and pipe ends are brought together — the dwell time must be minimized. The final phase is welding/cooling, set according to pipe diameter and wall thickness.

Thermofusion Butt Fusion Hydraulic Welding Machine Specification

Product Name		Thermofusion Butt Fusion Hydraulic Welding Machine
Model		SMD-B200/63H
Pipe size (MM)		63-200MM
Application		PE Pipe & Fitting Welding
Heating plate Max. Temperature		270℃
Temp.deviation in surface (170-250 ℃)		≤±7℃
Pressures Adjustable Ranges		0-6.3Mpa
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		1.1KW
Hydraulic unit power		0.75KW
Total Power		2.85KW
Weight		106KG
Packing	Cases	3 plywood cases
	Volume	0.58 CBM

FAQ

1. ZEMOWELD: based in Hebei, China — comprehensive manufacturer and experienced exporter of thermoplastic welding equipment.
2. Quality: pre-production samples + final inspection.
3. Products: Butt Fusion, Electrofusion, PPR, Automatic, Fittings, Pipe Tools.
4. CE/ISO/BV/SGS/CNAS certified. 40mm to 3000mm range.
5. FOB/CFR/CIF/EXW/FAS/CIP/FCA/CPT/DDP/DDU. Payment: USD/EUR/CNY via T/T, L/C, D/P, D/A, , PayPal, Western Union.
