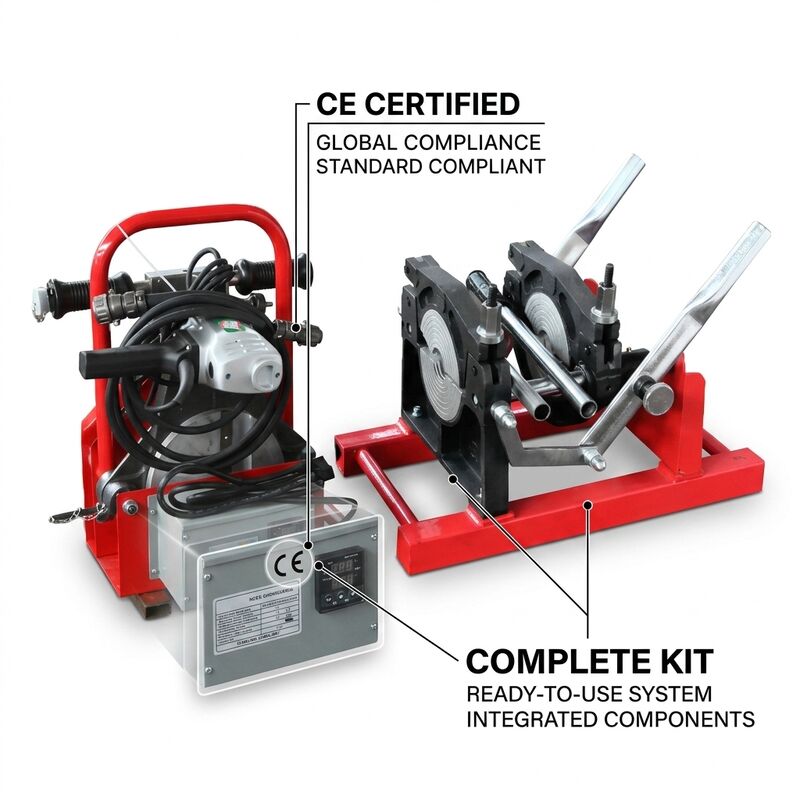

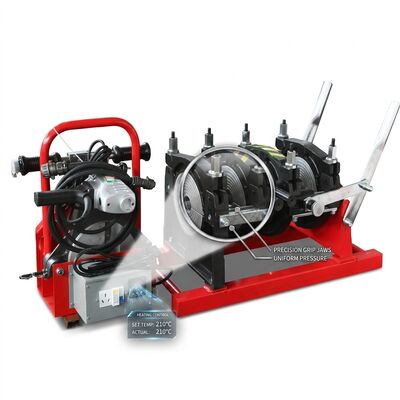

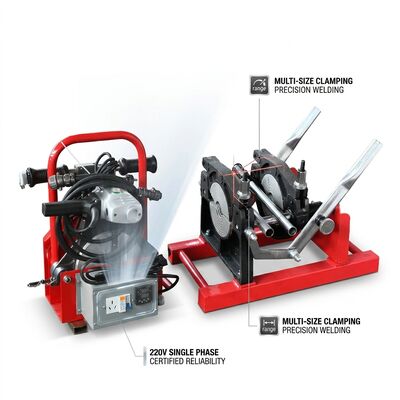

63mm PE Pipe Butt Fusion Welder | Manual HDPE Joining Machine

Product Details:

Contact Now

Detailed Product Description

Highlight:

63mm PE pipe fusion welder

manual HDPE joining machine

butt fusion welding machine with warranty

PE Pipe Manual Butt Fusion Welding Machine

Zemotech delivers professional-grade butt welding machines for HDPE pipes from 20mm to 3000mm OD. While butt welding is technically feasible for all diameters, pipes below 63mm present alignment challenges best addressed with electrofusion. For larger diameters, our manual machines provide exceptional weld quality. Large-diameter pressure and non-pressure pipes to 3000mm are regularly welded with our comprehensive equipment range.

Manual Butt Fusion Welding Machine Specification

Product name		Polyethylene Pipe Manual Butt Fusion Welding Machine
Model		SMD-B160/50M
Pipe size (mm)		50,63,75,90,110,125,140,160
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Compliance & Warranty

Engineered to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007).
Full 24-month international warranty on all components and workmanship.

FAQ

1. ZEMOWELD: 20+ years manufacturing thermoplastic welding equipment for global markets.
2. Quality: pre-production samples + final inspection guarantee.
3. Products: Butt Fusion, Electrofusion, PPR, Automatic Welders, Fittings, Pipe Tools.
4. CE/ISO/BV/SGS/CNAS certified. 40mm-3000mm welder range.
5. FOB/CFR/CIF/EXW. Payment: T/T, L/C, D/P, D/A, , PayPal, Western Union.
