PP Manual Butt Fusion Welder 160mm OEM Design Available

Product Details:

Contact Now

Detailed Product Description

Highlight:

PP manual butt fusion welder 160mm

OEM manual butt fusion welder

160mm manual butt fusion welding machine

Manual Butt Weld Fusion Machine Description

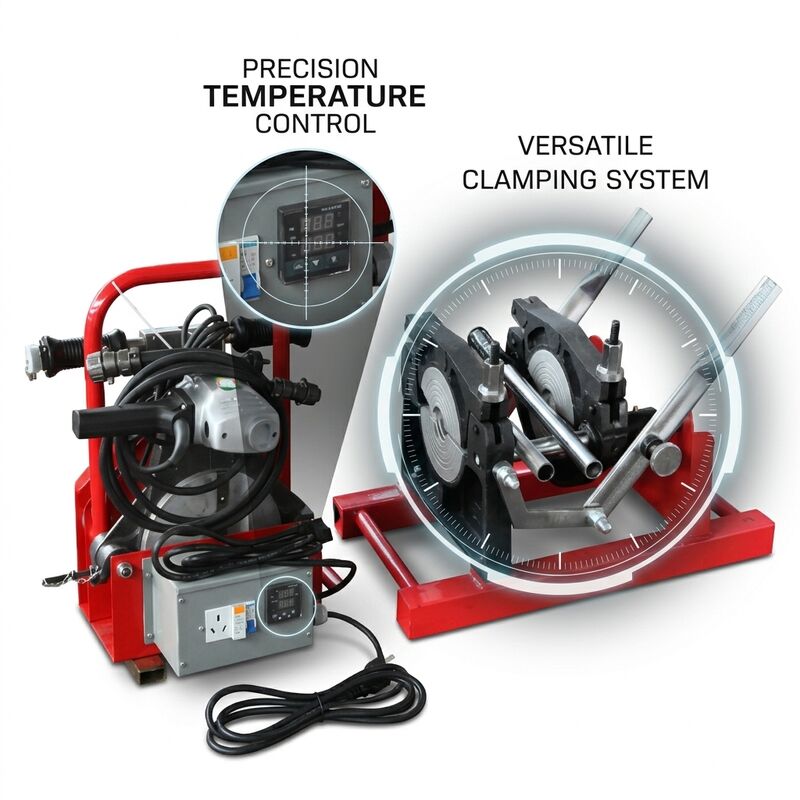

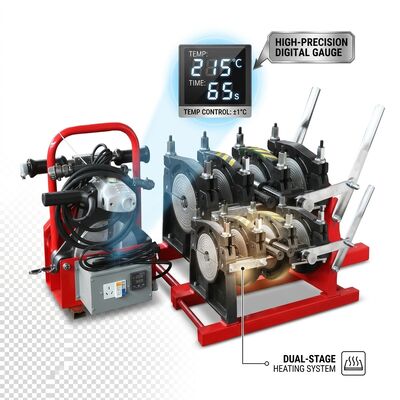

This manual butt weld fusion machine is designed for welding PE, PP and PVDF pipes and fittings with straightforward operation suitable for any complex work environment. The complete package includes: basic frame, hydraulic hand pump unit, electric planing tool, PTFE-coated heating plate, and dedicated support brackets for the planing tool and heating plate — with optional accessories available.

Manual Butt Weld Fusion Machine Specification

product name		160MM Manual Butt Weld Fusion Machine
Model		SMD-B160/50M
Pipe size (mm)		50,63,75,90,110,125,140,160
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Product Features

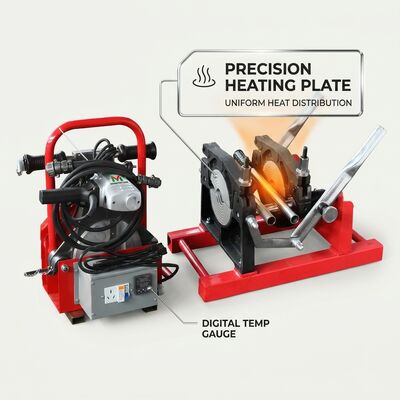

Removable PTFE anti-stick coated heating plate with independent digital temperature control.
Electric planing tool for precise face milling.
High-strength lightweight construction — compact, delicate, user-friendly.
Ultra-low starting pressure ensures reliable small pipe fusion quality.
Dual-channel digital timer tracks soak and cooling phase times independently.
High-accuracy shockproof pressure gauge with clear analog readout.

Warranty Information

ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007) compliant design.
24-month international warranty coverage.
