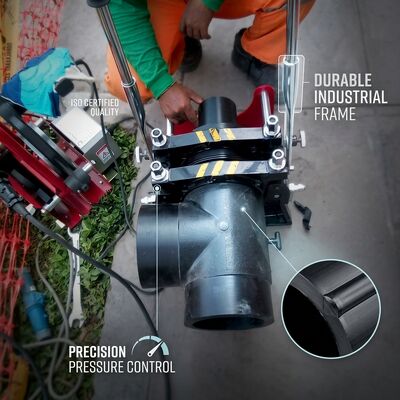

Name: 140mm High Precision Manual Butt Fusion Welder | PE PP PVDF
Brand: HEBEI ZEMO TECHNOLOGY CO., LTD.
Price: 50.00 USD
Availability: InStock

Home Products Manual Butt Fusion Welding Machine

140mm High Precision Manual Butt Fusion Welder | PE PP PVDF

Product Details:

Contact Now

Detailed Product Description

Highlight:

140mm manual butt fusion welder

PE PP PVDF welding machine

high precision fusion welder

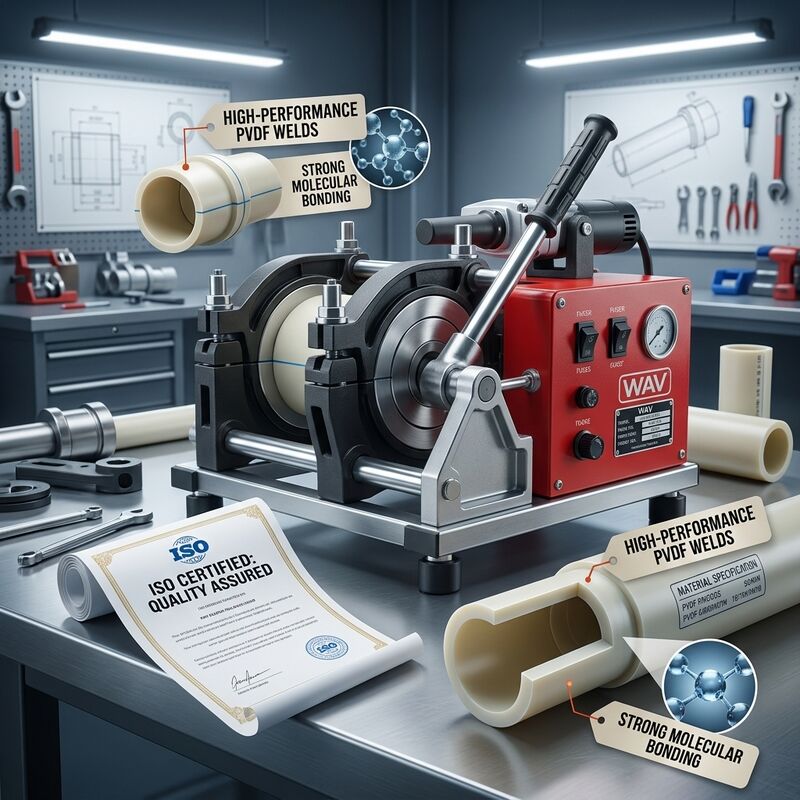

Manual Butt Weld Fusion Machine Description

This manual butt weld fusion machine is engineered to join PE, PP and PVDF pipes and fittings with exceptional ease of operation across all field conditions. The complete system comprises a basic frame, hydraulic unit, electric planing tool, PTFE-coated heating plate, and support brackets for both planing tool and heating plate — plus optional accessories for specialized applications.

Manual Butt Weld Fusion Machine Specification

product name		160MM Manual Butt Weld Fusion Machine
Model		SMD-B160/50M
Pipe size (mm)		50,63,75,90,110,125,140,160
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Technical Advantages

Removable PTFE-coated heating plate with independent temperature control.
Electric planing tool for consistent end-face preparation.
Lightweight, high-strength materials — compact and user-friendly.
Low starting pressure ensures reliable small-pipe welding quality.
Dual-channel timer independently tracks soaking and cooling phases.
Shockproof precision pressure gauge for clear force readings.

Guarantee & Standards

All designed to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007).
International warranty: 24 months on all components.
