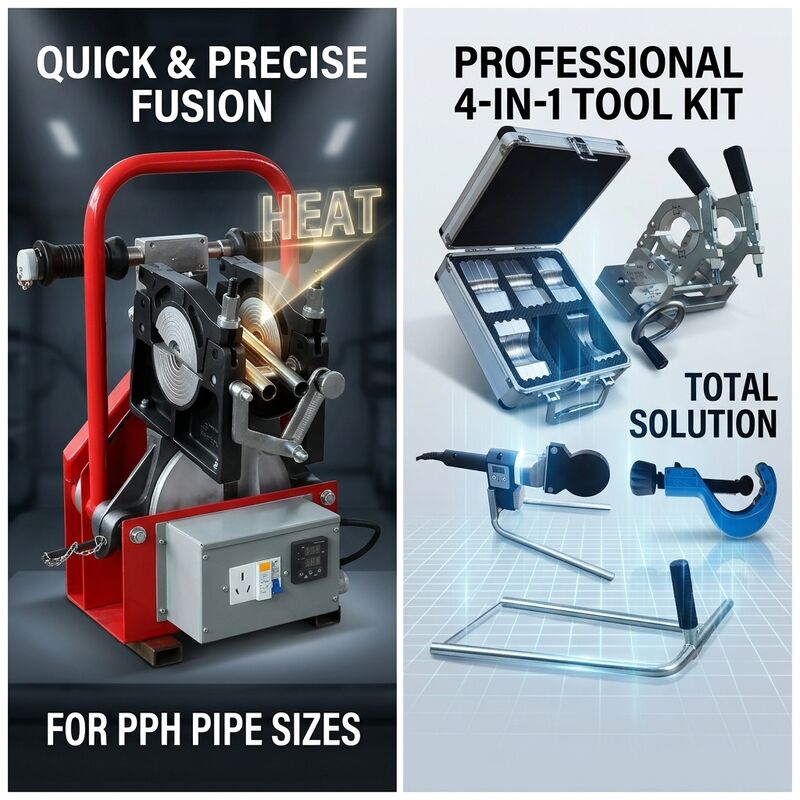

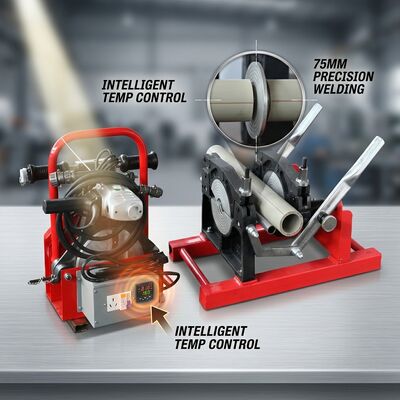

50mm Polyethylene Pipe Manual Butt Welder | HDPE Fusion Machine 220V

Product Details:

Contact Now

Detailed Product Description

Highlight:

50mm polyethylene pipe welder

HDPE fusion machine 220V

manual butt fusion welding machine

Manual Butt Fusion Welding Machine Description

Zemotech manufactures butt welding machines for HDPE pipes from 20mm to 3000mm OD. While butt welding is feasible for all diameters, pipes below 63mm are generally not recommended due to alignment challenges. For small-diameter joints, electrofusion is the preferred method. Large-diameter pressure and non-pressure pipes to 3000mm and above are regularly welded, with fittings machines producing up to 2000mm/80".

Manual Butt Fusion Welding Machine Specification

Product name		Polyethylene Pipe Manual Butt Fusion Welding Machine
Model		SMD-B160/50M
Pipe size (mm)		50,63,75,90,110,125,140,160
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Quality Commitment

All machines designed to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007).
Comprehensive 24-month international warranty.

FAQ

1. ZEMOWELD: 20+ years of thermoplastic welding equipment manufacturing.
2. Quality: pre-production samples + final inspection.
3. Products: Butt Fusion, Electrofusion, PPR, Automatic, Fittings, Pipe Tools.
4. CE/ISO/BV/SGS/CNAS certifications. 40mm-3000mm range.
5. FOB/CFR/CIF/EXW. Payment: T/T, L/C, D/P, D/A, , PayPal, Western Union.
