110V 60HZ HDPE Manual Butt Welder CE Certified Professional Grade

Product Details:

Contact Now

Detailed Product Description

Highlight:

110V HDPE manual butt welder

CE certified butt fusion welder

professional grade manual welding machine

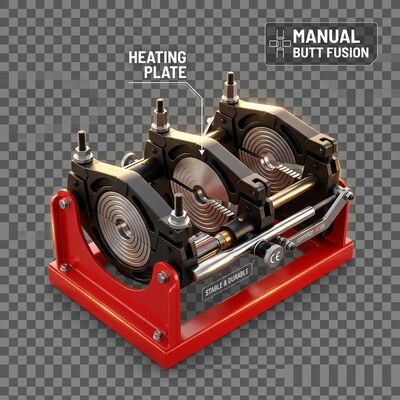

Professional HDPE Manual Butt Welder Overview

Since 2000, Zemotech has been at the forefront of butt fusion welding equipment manufacturing. This SMD-B160/50M manual hydraulic hand pump butt fusion welder incorporates premium-grade components for exceptional service life with minimal maintenance requirements. Designed for easy field operation, it delivers reliable, high-strength welds on HDPE, PP, and PVDF pipes up to 160mm diameter.

Manual Hdpe Butt Welder Specification

Product name		110V 60HZ CE Manual Hdpe Butt Welder
Model		SMD-B160/50M
Pipe size (mm)		50,63,75,90,110,125,140,160
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Key Features

Heavy-duty hydraulic hand pump system for precise pressure control.

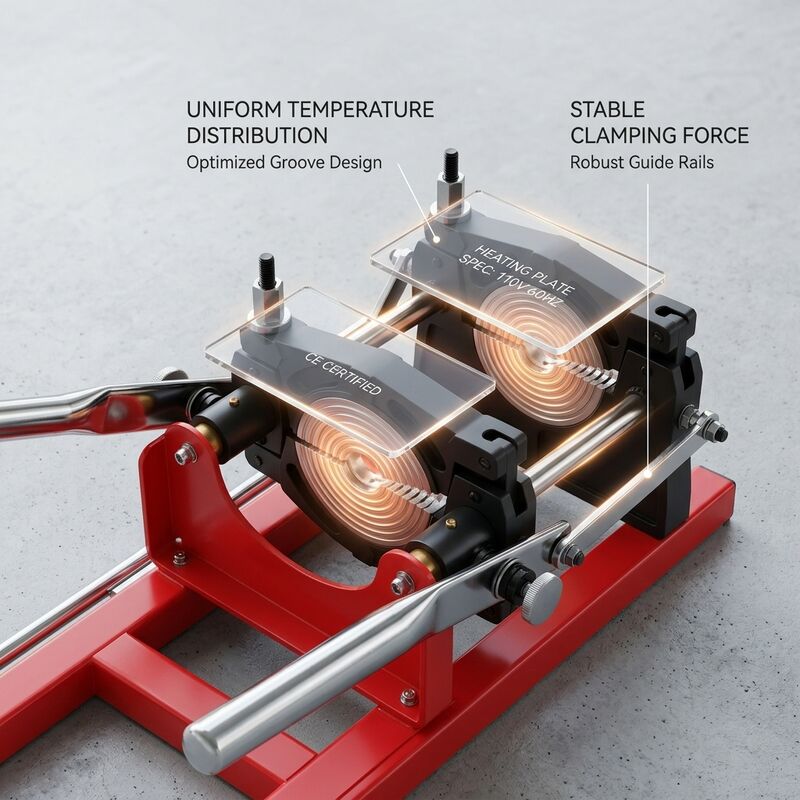

PTFE-coated heating plate with independent thermal regulation.

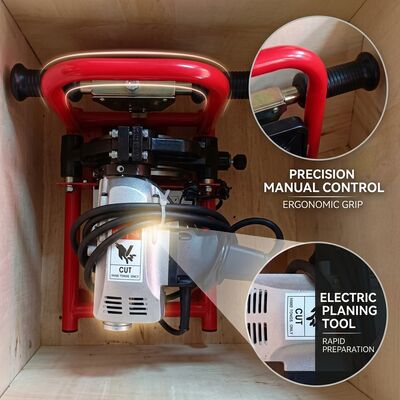

Electric planing tool for clean, parallel pipe end preparation.
Lightweight aluminum frame — easy to maneuver in field conditions.
CE and ISO certified for international quality compliance.

FAQ

1. ZEMOWELD — 20+ years manufacturing thermoplastic welding equipment for global export.
2. Quality: pre-production samples + final inspection guarantee performance.
3. Products: Butt Fusion, Electrofusion, PPR, Automatic Plastic Welders, HDPE Fittings, Pipe Tools.
4. Certified: CE, ISO, BV, SGS, CNAS lab. 40mm-3000mm welder range.
5. Delivery: FOB/CFR/CIF/EXW. Payment: T/T, L/C, D/P, D/A, Western Union, PayPal.
