Hot Melt 200mm Manual HDPE Pipe Butt Welder | Thermoplastic Fusion

Product Details:

Contact Now

Detailed Product Description

Highlight:

HDPE pipe butt welder

manual butt fusion welder

thermoplastic pipe welding machine

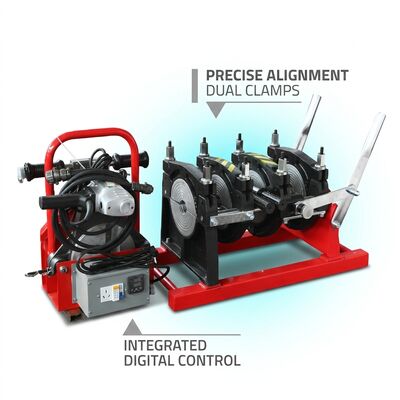

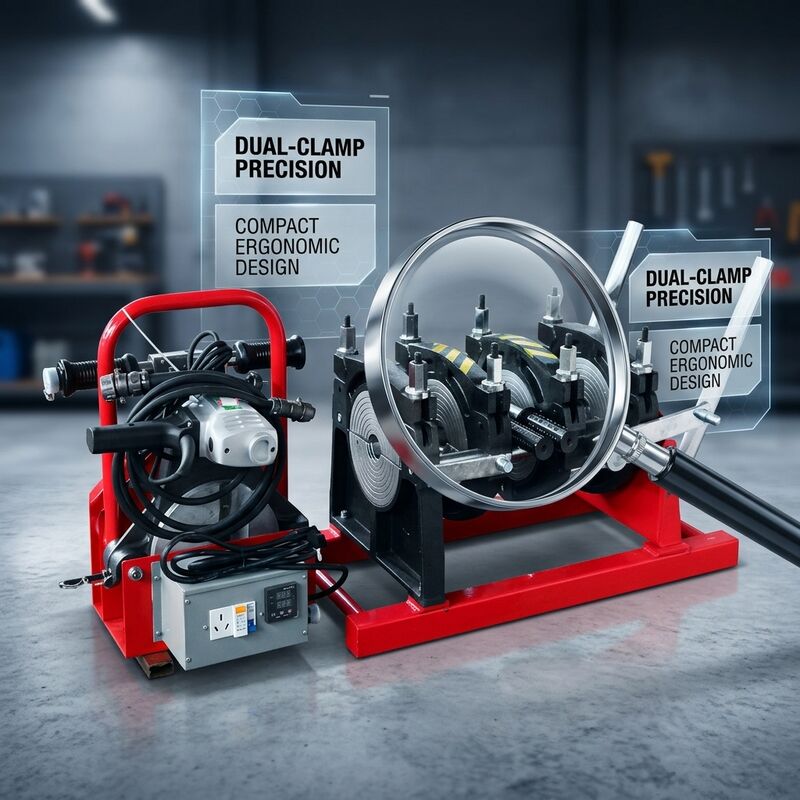

Hot Melt Plastic Butt Welder Overview

Zemotech delivers professional-grade butt welding solutions for HDPE pipes from 20mm to 3000mm OD. While diameters below 63mm present alignment challenges best addressed with electrofusion, our manual machines provide outstanding performance for pipes from 50mm to 200mm. Large-diameter pressure and non-pressure pipes to 3000mm and above are now regularly welded, with fittings machines achieving 2000mm/80".

Manual Butt Fusion Welding Machine Specification

Product name		50-200MM Manual Hot Melt Plastic Butt Welder Machine
Model		SMD-B200/50M
Pipe size (mm)		50,63,75,90,110,125,140,160 180,200
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Performance Highlights

Extended 200mm capacity for medium-range pipeline projects.
Uniform heating across full plate surface with ±7℃ deviation tolerance.
Manual hydraulic pump provides precise, controllable fusion pressure.
Electric planing tool ensures perfectly parallel end faces for maximum weld integrity.
Compact 44KG design with 2-case shipping configuration.

FAQ

1. ZEMOWELD: manufacturing thermoplastic welding equipment and exporting globally since 2000.
2. Quality: pre-production samples + final inspection before every shipment.
3. Products: Butt Fusion, Electrofusion, PPR, Automatic Welders, Fittings, Pipe Tools.
4. Certifications: CE, ISO, BV, SGS, CNAS. Welder range: 40mm-3000mm.
5. Terms: FOB/CFR/CIF/EXW. Payment: T/T, L/C, D/P, D/A, Western Union, , PayPal.
