Name: Dual Clamp 110mm HDPE Manual Butt Welder Single Phase Compact
Brand: HEBEI ZEMO TECHNOLOGY CO., LTD.
Price: 50.00 USD
Availability: InStock

Home Products Manual Butt Fusion Welding Machine

Dual Clamp 110mm HDPE Manual Butt Welder Single Phase Compact

Product Details:

Contact Now

Detailed Product Description

Highlight:

110mm HDPE manual butt welder

compact single phase welder

dual clamp butt fusion machine

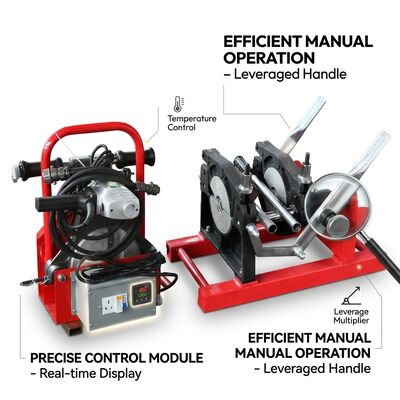

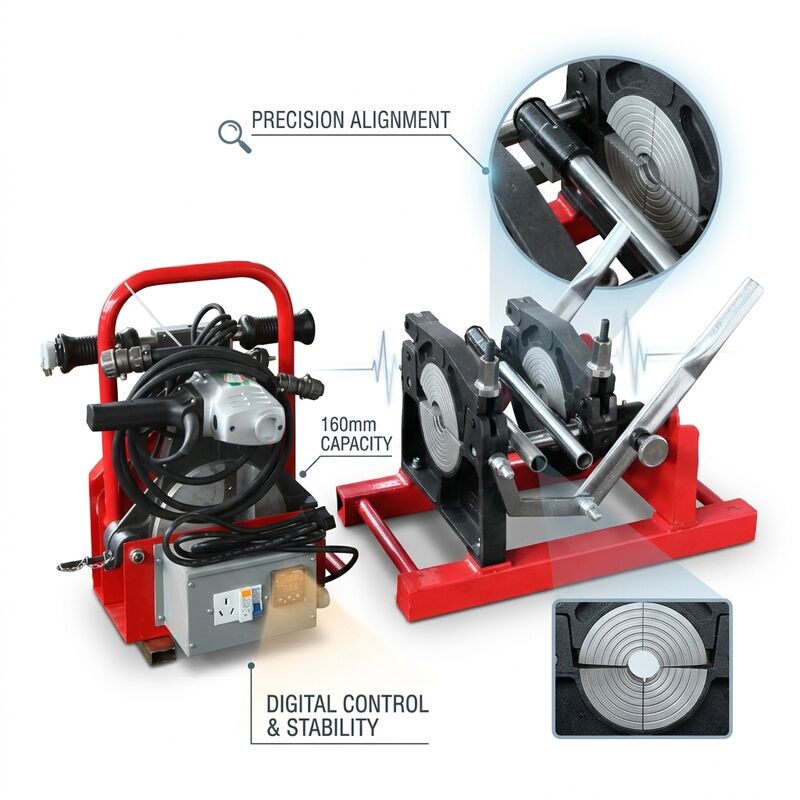

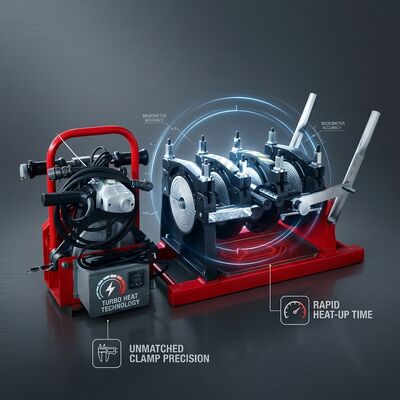

Dual Clamp HDPE Manual Butt Fusion Machine

Designed for precision butt welding of HDPE pipes and fittings, this dual-clamp manual butt fusion machine handles diameters from 50mm to 160mm. The rugged construction combines reliable clamping force with a high-performance PTFE-coated heating plate to deliver consistent, repeatable weld quality. Its compact footprint makes it ideal for both trench-side operations and workshop environments.

Manual HDPE Butt Fusion Machine Specification

product name		110MM Two Clamps Manual HPDE Butt Fusion Machine
Model		SMD-B160/50M
Pipe size (mm)		50,63,75,90,110,125,140,160
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Key Performance Features

PTFE anti-adhesion coated heating plate with independent digital temperature regulation.
Electric planing tool for precise pipe end face preparation.
Lightweight yet rigid frame construction — easy to transport and set up.
Low activation pressure protects small-diameter pipes during fusion.
Dual digital timer tracks both heating soak and cooling intervals.
High-precision shockproof pressure gauge for accurate force monitoring.

Warranty & Compliance

Manufactured to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007).
24-month international warranty on all components.
