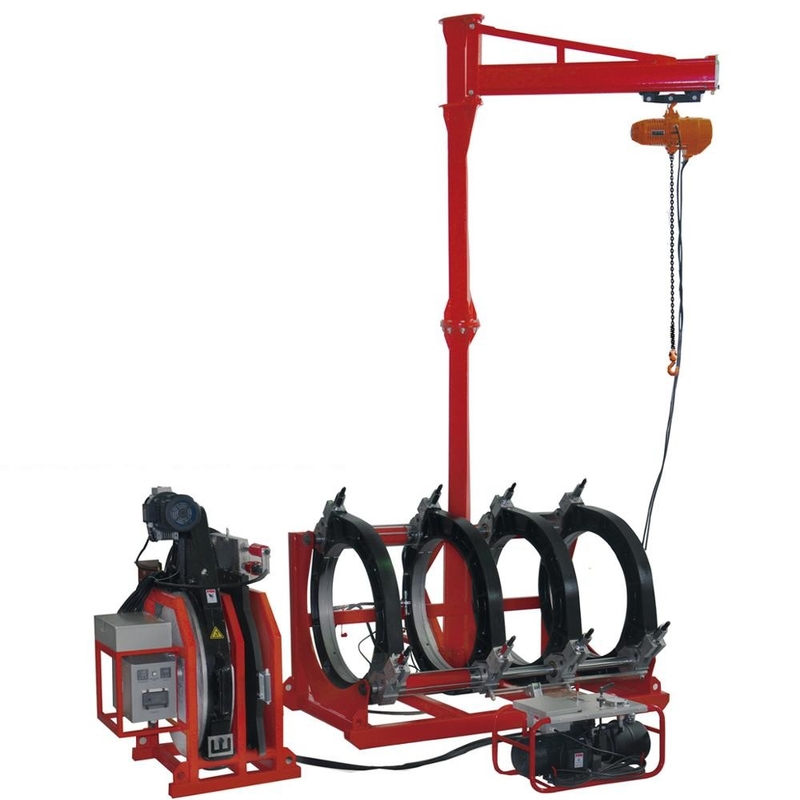

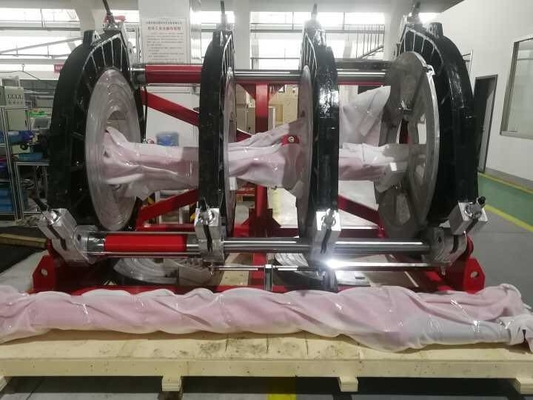

630 - 1200mm HDPE Butt Fusion Welding Machine DVS2207-1-2016

630 - 1200mm HDPE Butt Fusion Welding Machine DVS2207-1-2016

  • 630 - 1200mm HDPE Butt Fusion Welding Machine DVS2207-1-2016
  • 630 - 1200mm HDPE Butt Fusion Welding Machine DVS2207-1-2016
630 - 1200mm HDPE Butt Fusion Welding Machine DVS2207-1-2016
Product Details:
Place of Origin: China
Brand Name: ZEMO
Certification: CE , ISO
Model Number: SMD-B1000/630H (24"-40")
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Polywood cases
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 set/month
Contact Now
Detailed Product Description
Product Name: 1200MM HDPE Hydraulic Butt Welding Equipment Pipe Size (Inch): 630 ,710,800,900,1000,1200MM
Heating Plate Max. Temp.: 270 ℃ Temp.deviation In Surface (170-250 ℃): ≤±7℃
Pressures Adjustable Ranges: 0-16Mpa Working Voltage: 220V/380V/415V , 50/60HZ
Heating Plate Power: 17.5KW Planing Tool Power: 3KW
Hydraulic Unit Power: 3KW Total Power: 23.5KW
Weight: 2600KG Guarantee: 24 Months
High Light:

1200mm HDPE Butt Fusion Welding Machine

,

630 mm HDPE Butt Fusion Welding Machine

,

ISO HDPE Butt Fusion Welder

DVS2207-1-2016 630 - 1200mm HDPE Butt Fusion Welding Machine
1200MM HDPE Hydraulic Butt Welding Equipment

HDPE Hydraulic Butt Welding Equipment  Description


In the poly welding process known as butt fusion welding, pe butt welding, hdpe butt welding, butt welders or poly pipe welders are used to scrape, heat and weld HDPE pipe together.

Butt welders can come with manual hydraulics or electric hydraulics. All butt welders (except for self-contained welders) need a power supply for the heater plate and milling cutter/scraper. Electric hydraulic butt welders also use the electricity supply for the hydraulic system, used to hold the pipe while it is being scraped, heated and during cooling.

HDPE Hydraulic Butt Welding Equipment  Specification

Product Name  1200MM HDPE Hydraulic Butt Welding Equipment
Model
SMD-B1200/630H
Pipe size (Inch)

630 ,710,800,900,1000,1200MM

Application  PE Pipe & Fitting Welding

Heating plate Max. Temperature

270℃
Temp.deviation in surface (170-250 ℃)
≤±7℃
Pressures Adjustable Ranges
0-16Mpa
Working Voltage
380/415V  50/60HZ ,
Heating plate power
21.5KW
Planing tool power
4KW
Hydraulic unit power
3KW
Crane Power  1KW
Total Power
29.5KW
Weight
2740KG
Packing
Cases
5 plywood cases
Volume
19.54CBM



630 - 1200mm HDPE Butt Fusion Welding Machine DVS2207-1-2016 0



FAQ :



1. Who are we?
Zemo Welding Machinrey Co.,LTD (ZEMOWELD) is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Butt Fusion Machine,Electrofusion Welding Machine,PPR Welding Machine,Automatic Plastic Welding Machine,Workshop Fitting Welding Machine,HDPE Fitting,Plastic Pipe Tools

4. Why should you buy from us not from other suppliers?
1. Welding equipment has CE,ISO,BV, SGS certification, as well as domestic welding industry laboratory CNAS certification. 2. 20 years of experience in welding machine export sales 3. Welder supply range from 40mm to 3000mm

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian





All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)

International warranty: 24months.

Any parts broken or does not work under normal operating,we are free to provide.
