| Place of Origin: | China |
| Brand Name: | ZEMO |
| Certification: | CE , ISO |
| Model Number: | SMD-B800/450H (18-36") |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Polywood cases |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 set/month |

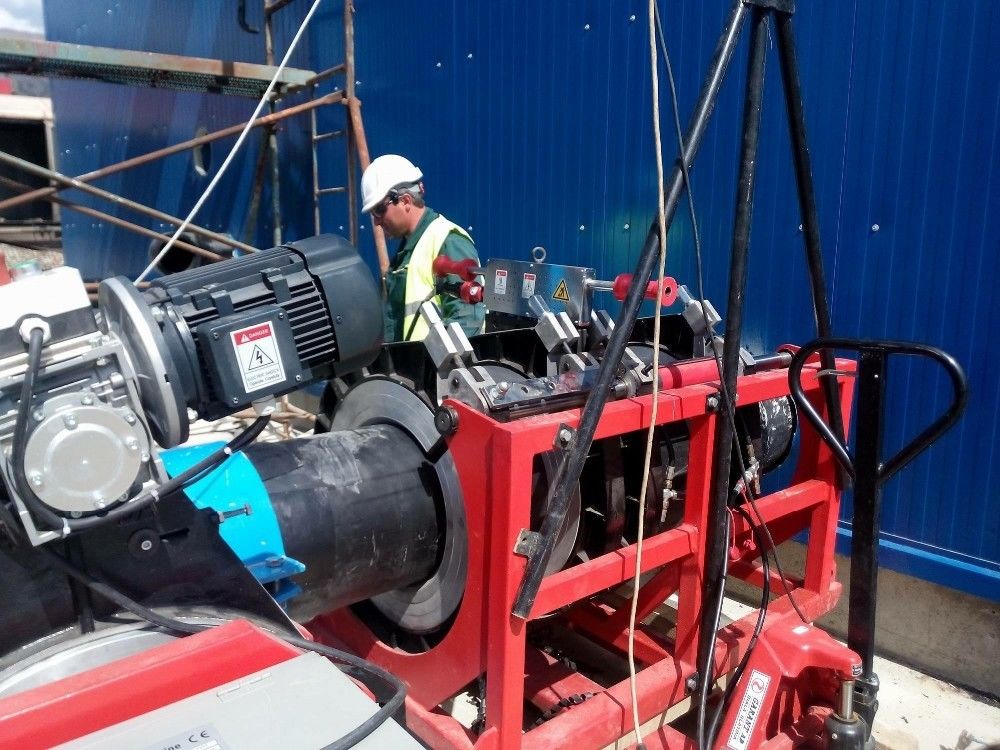

| Product Name: | Butt Fusion Welder For Welding HDPE Pipes 800MM | Pipe Size (MM): | 450 ,500,560,630,710,800MM |
|---|---|---|---|
| Heating Plate Max. Temp.: | 270 ℃ | Temp.deviation In Surface (170-250 ℃): | ≤±7℃ |
| Pressures Adjustable Ranges: | 0-16Mpa | Working Voltage: | 220V/380V/415V , 50/60HZ |
| Heating Plate Power: | 12.35KW | Planing Tool Power: | 2.2KW |
| Hydraulic Unit Power: | 3KW | Total Power: | 18.2KW |
| Weight: | 1360KG | Guarantee: | 24 Months |
| High Light: | 800MMButt Fusion Welder,HDPE Pipes Butt Fusion Welder,800MM Hdpe Butt Fusion Welding Machine |
||
The Butt Welding method of joining polyethylene (PE) pipe requires the combined application of appropriate temperature, time and pressure to ensure a sound weld.
Operators should take care to determine the suitability of materials for butt welding. Join only pipes and fittings made from the same raw materials, eg PE to PE, PP to PP, PVDF to PVDF etc.
| Product Name | Butt Fusion Welder for Welding HDPE Pipes | |
|
Model
|
SMD-B800/450H
|
|
|
Pipe size (MM)
|
450-800MM |
|
| Application | PE Pipe & Fitting Welding | |
|
Heating plate Max. Temperature |
270℃
|
|
|
Temp.deviation in surface (170-250 ℃)
|
≤±7℃
|
|
|
Pressures Adjustable Ranges
|
0-16Mpa
|
|
|
Working Voltage
|
380/415V 50/60HZ ,
|
|
|
Heating plate power
|
12.5KW
|
|
|
Planing tool power
|
2.2KW
|
|
|
Hydraulic unit power
|
3KW
|
|
| Crane Power | 0.5KW | |
|
Total Power8.38
|
18.2KW
|
|
|
Weight
|
1360KG | |
|
Packing
|
Cases
|
5 plywood cases
|
|
Volume
|
8.39CBM
|
|
FAQ :
1. Who are we?
Zemo Welding Machinrey Co.,LTD (ZEMOWELD) is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Butt Fusion Machine,Electrofusion Welding Machine,PPR Welding Machine,Automatic Plastic Welding Machine,Workshop Fitting Welding Machine,HDPE Fitting,Plastic Pipe Tools
4. Why should you buy from us not from other suppliers?
1. Welding equipment has CE,ISO,BV, SGS certification, as well as domestic welding industry laboratory CNAS certification. 2. 20 years of experience in welding machine export sales 3. Welder supply range from 40mm to 3000mm
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
