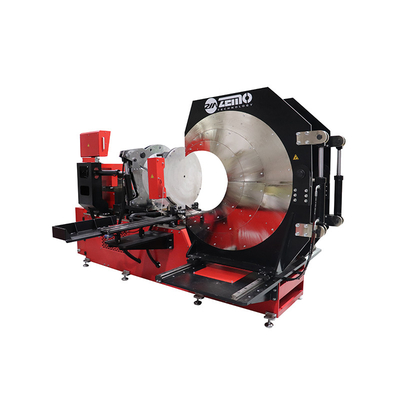

1200mm 380v Poly Saddle Socket Fusoin Machine

1200mm 380v Poly Saddle Socket Fusoin Machine

  • 1200mm 380v Poly Saddle Socket Fusoin Machine
  • 1200mm 380v Poly Saddle Socket Fusoin Machine
1200mm 380v Poly Saddle Socket Fusoin Machine
Product Details:
Place of Origin: China
Brand Name: ZEMO
Certification: CE, ISO
Model Number: SHM1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Delivery Time: 15 working days after payment
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 SETS/Week
Contact Now
Detailed Product Description
Product Name: 1200mm 380v Poly Saddle Socket Fusoin Machine Size: 1200mm
Material: HDPE , PP, PE Pipe Voltage: 380V
Warranty: 2 Years Heating Plate Power: 12KW
Drill Motor Power: 3KW Hydraulic Unit Power: 0.75KW
Dimension(l*w*h): 1020X600X1200MM Application: Reduce Tee Made
High Light:

1200mm Poly Saddle Socket Fusoin Machine

,

380V Poly Saddle Socket Fusoin Machine

,

Poly Saddle Socket Fusoin Machine

1200mm 380v Poly Saddle Socket Fusoin Machine

1200mm 380v Poly Saddle Socket Fusoin Machine ​​​ introduction



A saddle socket fusion machine, also known as a saddle fusion machine or saddle welding machine, is a specialized tool used for joining plastic pipes through a fusion welding technique. It is commonly used for connecting branch pipes to existing main pipes, typically in applications such as water distribution systems, irrigation systems, and industrial piping networks.



Saddle fusion machines produce durable reducing tees and manifolds for all combinations of main and lateral pipes. The latest technology ensures equipment meets the highest level of requirements for modern production lines. If you need high-quality sidewall fusion, talk to our team about a PolySaddle for your operations.



Reducing tees and manifolds are important aspects of PE pipelines. The PolySaddle is designed for operation by one person, incorporating a hydraulic heating plate and loading system. Make pipe production easy for you and your team when you choose the latest in sidewall fusion machinery



The PolySaddle range offers 90 degree fusion of HDPE pipe onto segments up to 50% larger than the original pipe. This applies to all combinations of main and lateral pipes from 63mm (2") up to 1200mm (48") OD. At zemo, outstanding fusion isn't the only way you'll stand out to your customers.

1200mm HDPE Pipe Saddle Fusion Welding Machine ​Data Sheet



Product Name

1200mm 380v Poly Saddle Socket Fusoin Machine

Model

SHM1200
Heating Plate Power  1.5KW
Application  Recduce Tee Made
Hydraulic Unit Power  0.75KW
Drill Motor Power  16.5KW
Working Voltage 380V
Size  Main pipe 560-1000mm . Branch pipe 160-500MM
L*W*H 1020X600X1200MM
Weight 1900KG



Saddle Fitting Fusion Welding Machine Advantage

1.Efficiency: Saddle fitting fusion welding machines are designed to increase efficiency in the welding process. They enable fast and precise welding of saddle fittings onto pipes or other structures. This reduces the time required for welding operations, resulting in increased productivity.



2.Accuracy: These machines ensure accurate and consistent welding results. They are equipped with advanced technology and controls that allow for precise alignment and positioning of the saddle fitting. This helps in achieving high-quality welds with minimal errors or defects.



3.Versatility: Saddle fitting fusion welding machines are versatile tools that can be used for various applications. They are suitable for welding different types of materials, including polyethylene (PE), polypropylene (PP), and other thermoplastic materials commonly used in piping systems. Their adjustable features make them adaptable to different pipe sizes and configurations







1200mm 380v Poly Saddle Socket Fusoin Machine 0






1200mm 380v Poly Saddle Socket Fusoin Machine 1

Greeting from ZEMO in China! ZEMOTECH is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China. Our main products: Butt Fusion Machine,Socket Fusion Machine,Electrofusion Machine, Hot Air Welders,Hot Air Welding Machine, Extrusion Welders, Geomembrane Overlap Wedge Welders,Band Saw,Cutting Machine,& Welding accessories.
