315mm Pipe Band Saw , 380V 50/60HZ HDPE Pipe Cutter Machine

315mm Pipe Band Saw , 380V 50/60HZ HDPE Pipe Cutter Machine

  • 315mm Pipe Band Saw , 380V 50/60HZ HDPE Pipe Cutter Machine
315mm Pipe Band Saw , 380V 50/60HZ HDPE Pipe Cutter Machine
Product Details:
Place of Origin: China
Brand Name: ZEMO
Certification: CE, ISO
Model Number: SJC315
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Delivery Time: 3-5 working days after payment
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 SETS/Week
Contact Now
Detailed Product Description
Product Name: HDPE Pipe Band Saw Size: 315MM
Keywords: HDPE Pipe Angle Cutting Machine. HDPE/PP/PVC Pipe Cutting Application: Cutting Hdpe Pipe
Voltage: 380V,50/60HZ Warranty: 2 Years
Working Ranges: ≤315MM Cutting Angle Error: ≤1 °
Line Speed: Adjustable Weight: 884KG
High Light:

315mm Pipe Band Saw


380V Pipe Band Saw


60HZ HDPE Pipe Cutter Machine

315mm HDPE Pipe Band Saw For Cutting Hdpe Pipe


HDPE Pipe Band Saw Description


HDPE Pipe Band Saw Cutting Machine. A special designed integrality of body and swivel table makes them extremely stable.Self Inspection and stop of the machine in case of saw blade breaks enable to guarantee operator`s safety.Reliability, lower noisy, easy to handle.67 degree maximum cutting angle allows production of segments for bends, tees and Y-branch tees Feed speed adjustable


HDPE Pipe Band Saw ​Data Sheet


Product Name PE pipe band saw
Input Voltage 380V±10% 50/60Hz
Product Brand ZEMO
Model SJC315
Cutting Range ≤1600mm
Cutting Angle Error ≤1 degree
Line Speed 0-255m/min
Power 9KW
international Warranty 12 months
Weight 884KG


Hot Tags: pe pipe band saw, China, manufacturers, suppliers, factory, wholesale, machine electrofusion, dewalt portable band saw, cordless band saw, electric band saw, jet bandsaw, tabletop bandsaw
Previous: Plastic Pipe Bandsaw Cutting Machine

HDPE Pipe Band Saw Features


1. Cutting angle range 0-67.5 °, accurate angle positioning

2. It is suitable for solid-wall pipes and structured wall pipes made of thermoplastic such as PE PP, and also other kind of pipes and fittings made of non-metal materials.

3. Base on the integrated design, the design of the saw blade and turn table is stabilized to guarantee operator's safety.

4. It can check the saw breaking and stop in time automatically to guarantee operator's safety.

5. Good stability, lower noisy, easy to handle.

6. Complies with 98/37/EC and 73/23/EEC standards.

7.Infrared protection device(optional)
8.Automatic angle rotation function (Optional)

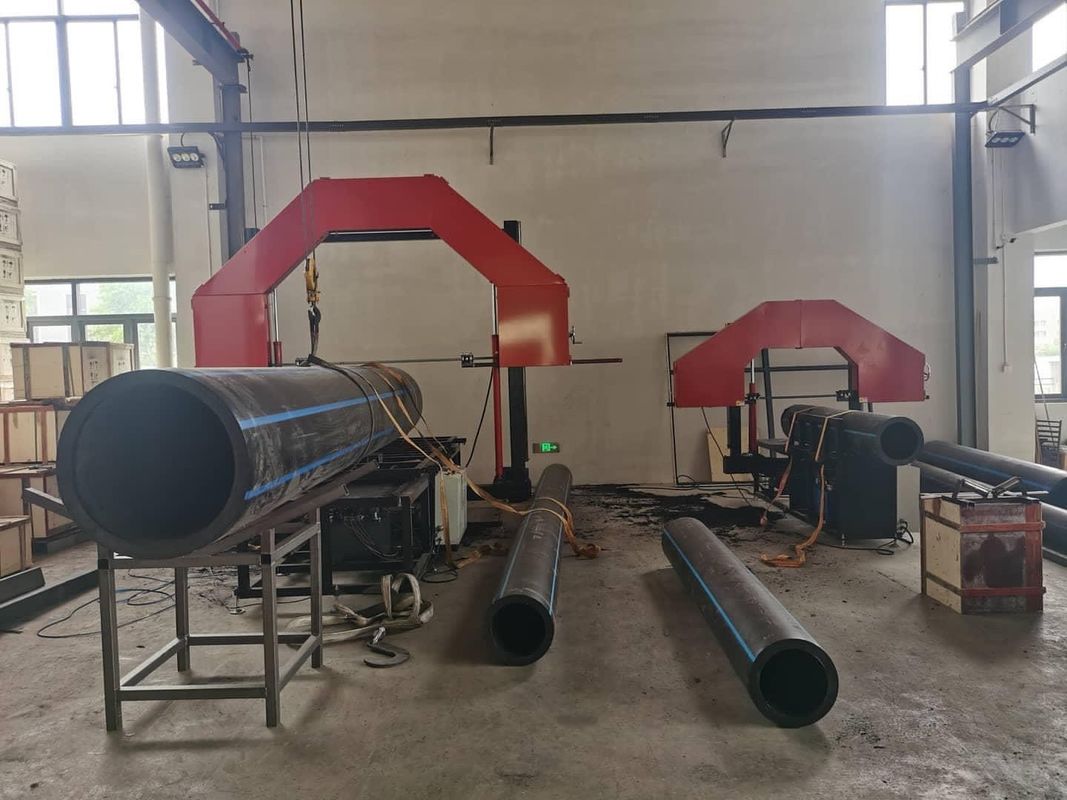

HDPE Pipe Band Saw  Operation


315mm Pipe Band Saw , 380V 50/60HZ HDPE Pipe Cutter Machine 0


Greeting from ZEMO in China! ZEMOTECH is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China. Our main products: Butt Fusion Machine,Socket Fusion Machine,Electrofusion Machine, Hot Air Welders,Hot Air Welding Machine, Extrusion Welders, Geomembrane Overlap Wedge Welders,Band Saw,Cutting Machine,& Welding accessories.
