| Place of Origin: | China |
| Brand Name: | ZEMO |
| Certification: | CE, ISO |
| Model Number: | DPS20-3.5KW |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiation |
| Delivery Time: | 3-5 working days after payment |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 SETS/Week |
| Product Name: | PE Pipe Electrofusion Welding Machine | Size: | 20-315MM |
|---|---|---|---|
| Voltage: | 220V,50/60HZ | Application: | For HDPE/PPR Pipe And Fittings |
| Warranty: | 2 Years | Automatic Grade: | Automatic |
| Control Mode: | Constant Voltage . | USB Interface Function: | USB Data Import And Export Function |
| Power: | 3.5KW | Dimension(l*w*h): | 352X188X341MM |
| High Light: | Automatic Electrofusion Welding Machine,PE Pipe Electrofusion Welding Machine,Bar Code Scanning electrofusion pipe welder |
||

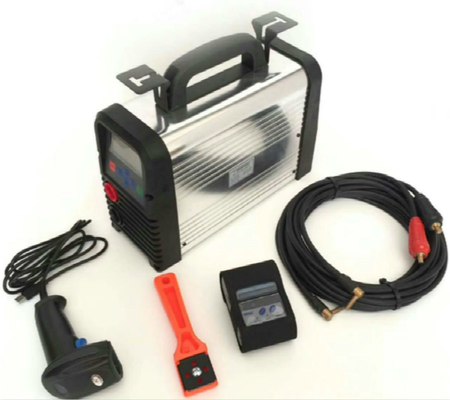

PE Pipe Electrofusion Welding Machine Description
DPS20 series HDPE Fittings Electrofusion Welding Machine is the special connecting device used to electrofusion connect polythene pressure and non-pressure conduit.
All the characteristics of this electrofusion welding machine have achieved International Standard (ISO12176-2), and even higher, it is the perfect corollary equipment for every PE pipe manufactures and construction units.
PE Pipe Electrofusion Welding Machine Specification
| Product Name | PE Pipe Electrofusion Welding Machine |
|
Model |
DPS20-3.5KW |
| Rated Power | 3.5KW |
| Application | Connect HDPE,PE and PPR with Fittings |
| Input Voltage | 220V |
| Rated Current | 55A |
| Rated Voltage | 75V |
| Welding Specification | Dn20-315 |
| L*W*H | 352X188X341 |
| Weight | 12KG |
PE Pipe Electrofusion Welding Machine Features
1.Advanced MCU as control unit, with abundant parameter settings, detection and perfect protection
2. Fast response to sudden power change (500 ~ 800ms), excellent stability,
3.Wide voltage Input: AC170V - 270V, adapt to site grid

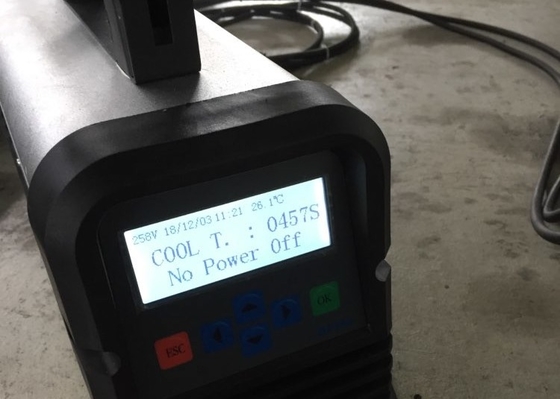

4.High brightness LCD display, Chinese or English operation, user-friendly HMI,
5.Output voltage / current / heat, past welding time / remaining time, welding status, browser on any input data
6.Suppression of harmonic output
7.Protection of cable moving parts with flexible connection
8.IP rating 54, guaranteed normal use in harsh environment.
