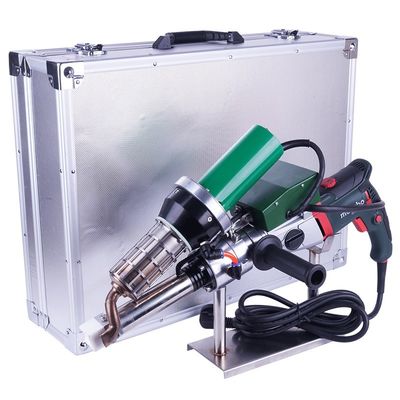

Name: 3400W 220V Hot Air Welding Machine HDPE Extrusion Powerful
Brand: HEBEI ZEMO TECHNOLOGY CO., LTD.
SKU: SMD-NS610B
Price: 50.00 USD
Availability: InStock

Home Products Hand Held Plastic Extruder

3400W 220V Hot Air Welding Machine HDPE Extrusion Powerful

Product Details:

Place of Origin:	China
Brand Name:	ZEMO
Certification:	CE, ISO
Model Number:	SMD-NS610B

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	AL boxes + carton
Delivery Time:	3-5 days after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Product Name:	HDPE Hand Extruder Hot Air Welding Machine	Voltage:	220V 50/60HZ
Condition:	New	Extruding Motor Power:	1300W
Hot Air Power:	3400W	Welding Rod Heating Power:	800W
Air Temp.:	20-620 ℃ Adjustable	Extruding Volume:	2.0KG/h
Welding Rod Diameter:	3.0-5.0mm	N.W:	6.5KG
Driving Motor:	Metabo	Thickness Welded:	8-40MM
Highlight:	3400W Hot Air Welding Machine , 220V Hot Air Welding Machine , Powerful hdpe extrusion machine

HDPE Hand Extruder Hot Air Welding Machine Description

HDPE Hand Extruder Hot Air Welding Machine is a new type of hot air welder which imported foreign advanced technology, well-developed,.It has reached or exceeded the same type products of oversea, filling the domestic blank. The major components (hot air gun and drive motor) are made of imported brand-name accessories, stable performance, long service life .

They are two independent systems,one is for preheating raw material,another is for welding rod extrusion. Reasonable structure, convenient operation, continuous welding, high working efficiency, powerful extrusion, to make the weld strength is greatly improved,It is the ideal product for a variety of thermoplastic welding processing.

HDPE Hand Extruder Hot Air Welding Machine Specification

Product Name	HDPE Hand Extruder Hot Air Welding Machine
Model	SMD-NS610B
Input voltage	220V
Frequency	50/60Hz
Extruding power	1300W
Hot air power	3400W
Welding rod heater power	800W
Air Temperature	20-620℃
Extruding temperature	50-380℃
Extruding volume	2.0 - 2.5Kg/h
Welding rod diameter	3 - 5 mm
Weight	6.9 Kg
Driving motor	Metabo
Materials thickness	1 - 20mm

Hand Held Plastic Extruder For Sheet Geomembrane Pipe​​ Features

This series of welding machine is powerful with high welding speed and good welding quality.

It is available for welding PE, PVDF, PVC, PP and other hot melt materials.

It is the first one to have a digital display control, 360 degree rotating welding head,

the motor cold start protection, independent heating of welding rod and membrane material and other functions in China.

Extrusion Welding Machine For Welding Geomembrane Application

Tips:

a. Preheating 3-5 mins and make previous welding flux soften, then using tools to pick out the softened flux before start work.
b. This Hand Extruder is welded with PE/PP/HDPE welding rod Φ3.0-4.5mm, the welding speed is 1.8-3.6Kg/h.

c. Any customized demands, you can ask us directly. We have professional technicians team.
